Dira System Windows & Facade / Est. 2001

Framing architecture. Defining light. Engineering space.

Premium aluminium system windows, doors and facade solutions engineered for modern architecture.

Architectural aluminium systems connecting structure, material, glass, movement and installation.

Explore our systems Discuss your project

02 / About Dira

Built around precision.

Established in 2001, Dira System Windows & Facade focuses on architectural aluminium systems, windows, doors, facades, glass solutions and installation-led execution for modern built environments.

DesignSystemFabricationInstallation

03 / Core solutions

Architectural systems.Designed as one language.

A focused portfolio of aluminium, glass and architectural systems for openings, elevations and modern interior environments.

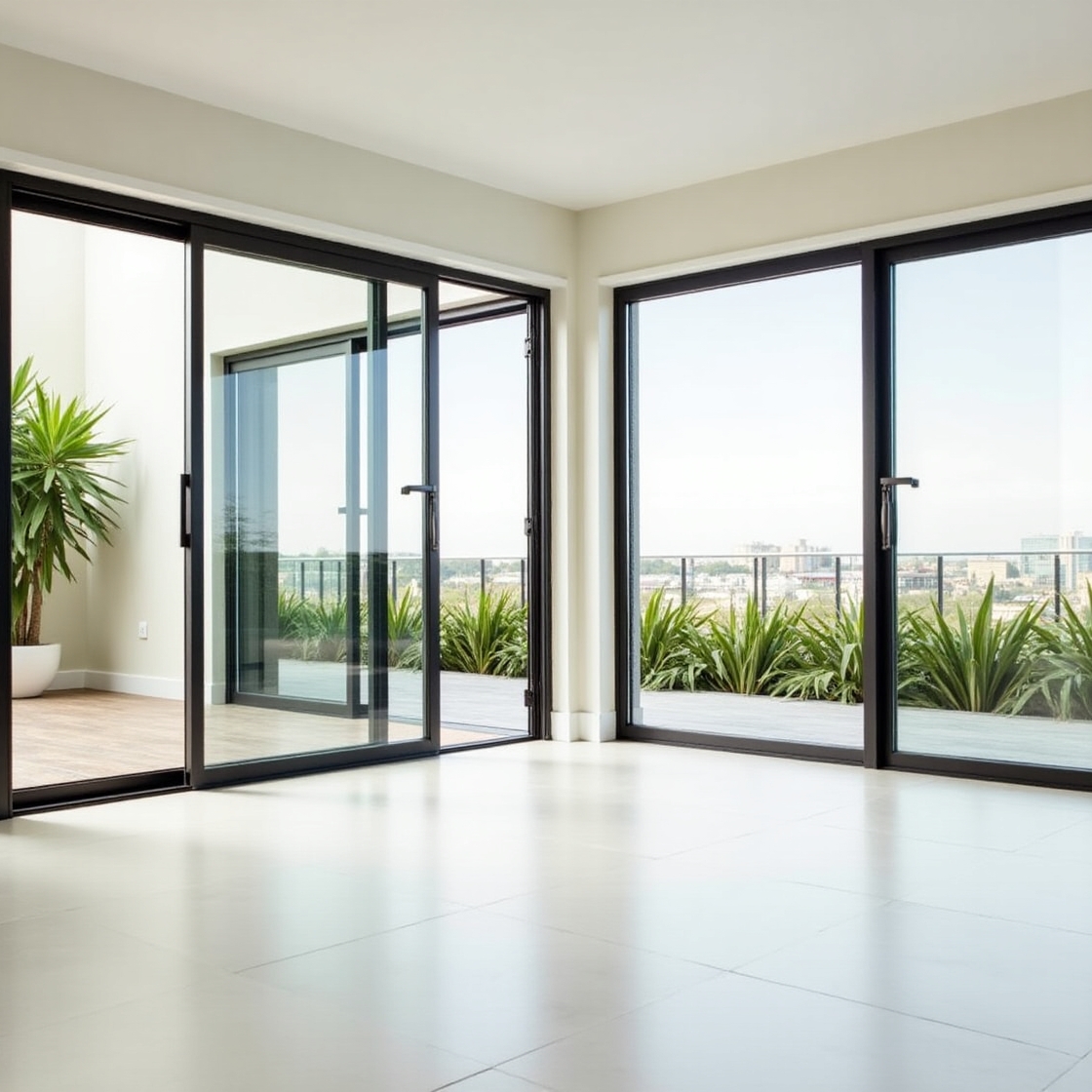

04 / Windows & doors

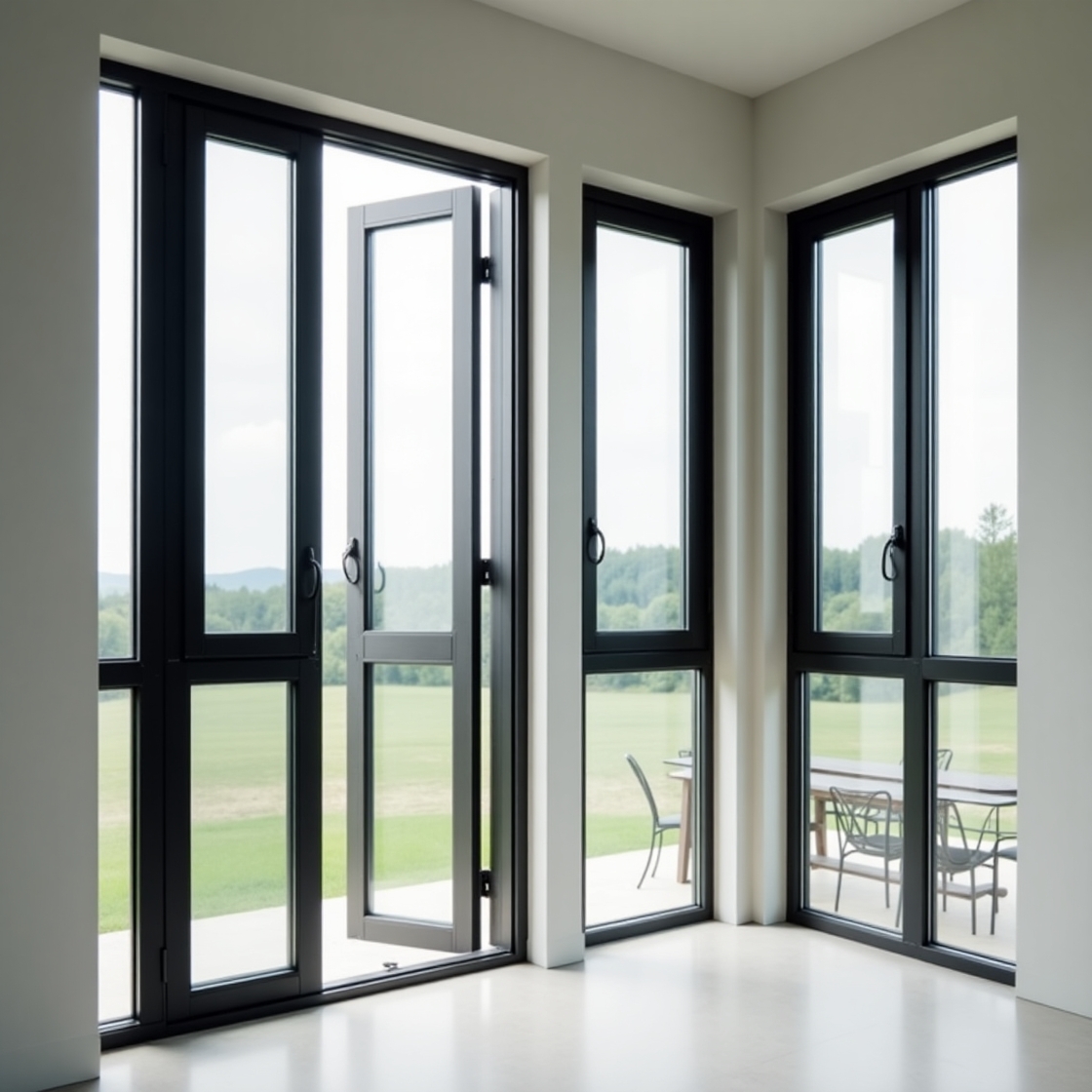

Open the architecture.

Window and door systems designed to introduce movement, daylight and connection into architectural spaces.

  • Aluminium system windowsFrame · profile · glass
  • Casement windowsSide-hung opening
  • Bi-fold windowsFolding configuration
  • Profile doorsFull-height access

05 / Dira window series

Engineered for different scales of architecture.

Explore Dira window systems developed around shutter scale, slim interlocks, glazing configurations, track options and architectural finishes.

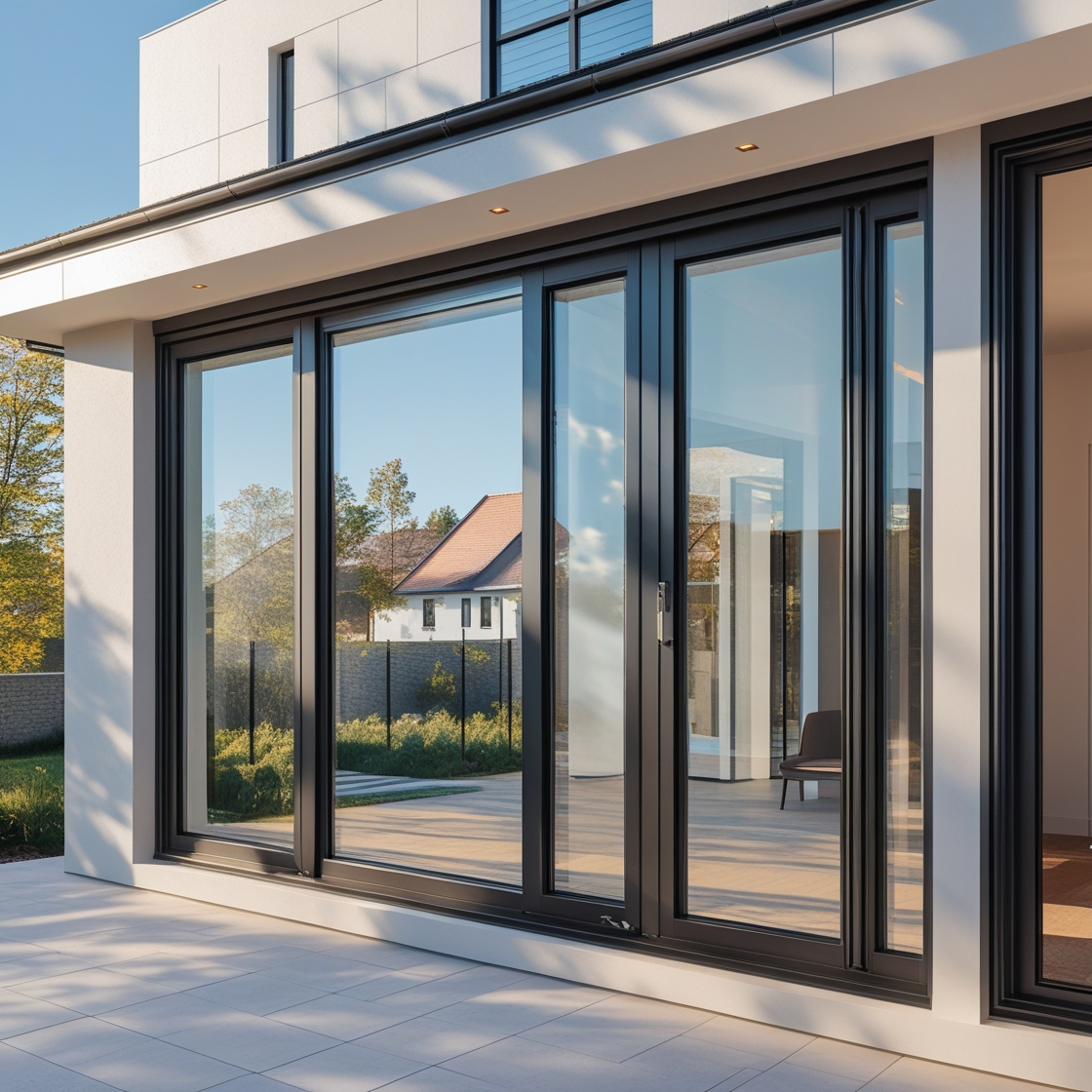

Sliding systems

Casement & tilt systems

Folding, vertical & door systems

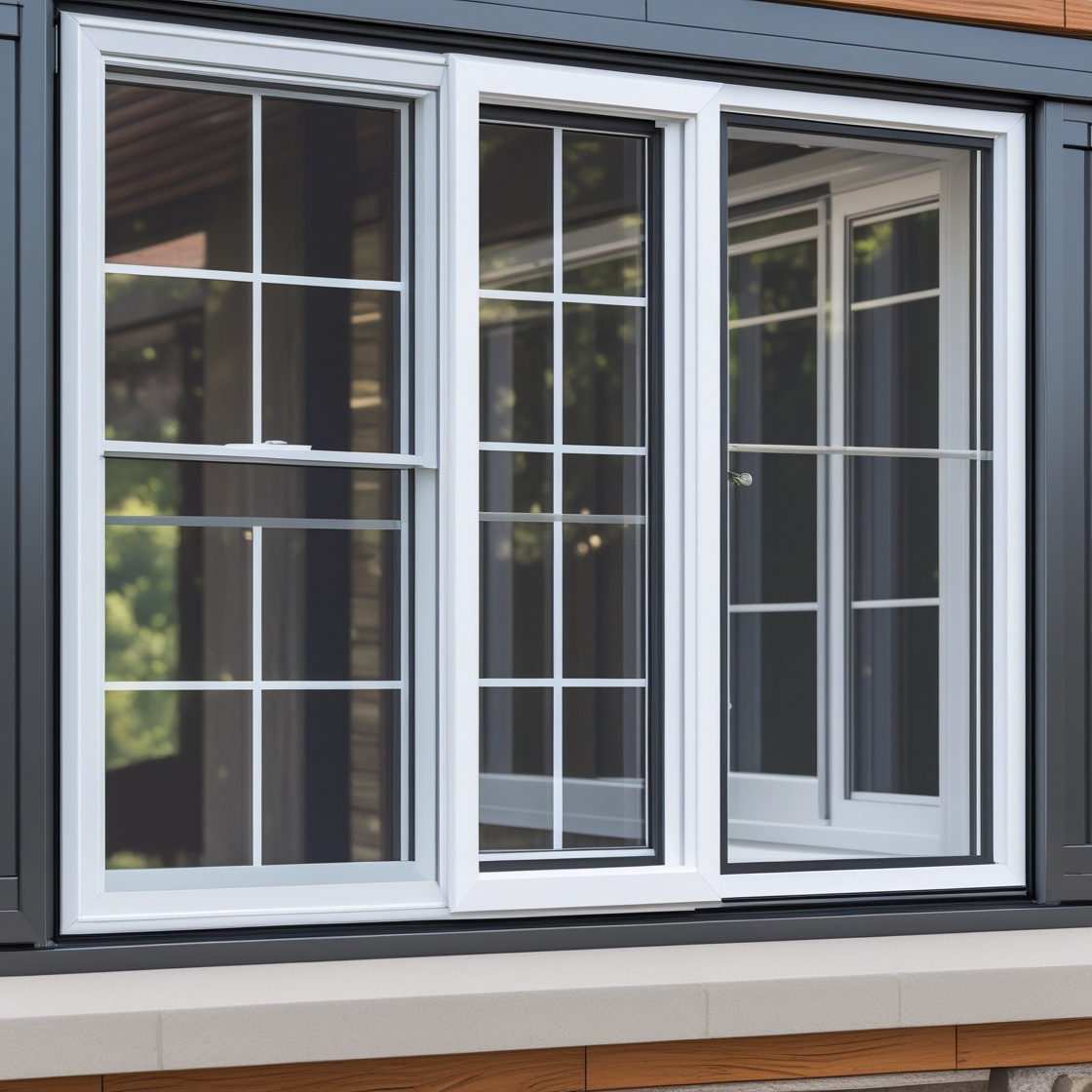

VS2500 Series Windows

Sliding system windows

Maximum shutter
900mm × 2100mm
Slim interlock
21mm
Glass range
4mm to 6mm
Glazing
Single and double glazed
Track configurations
2 Track / 3 Track / 4 Track
Finishes
Powder / Wood / Anodizing
Locking type
Single & multipoint lock with handle
Hardware
Hardware compatible with aluminium sections

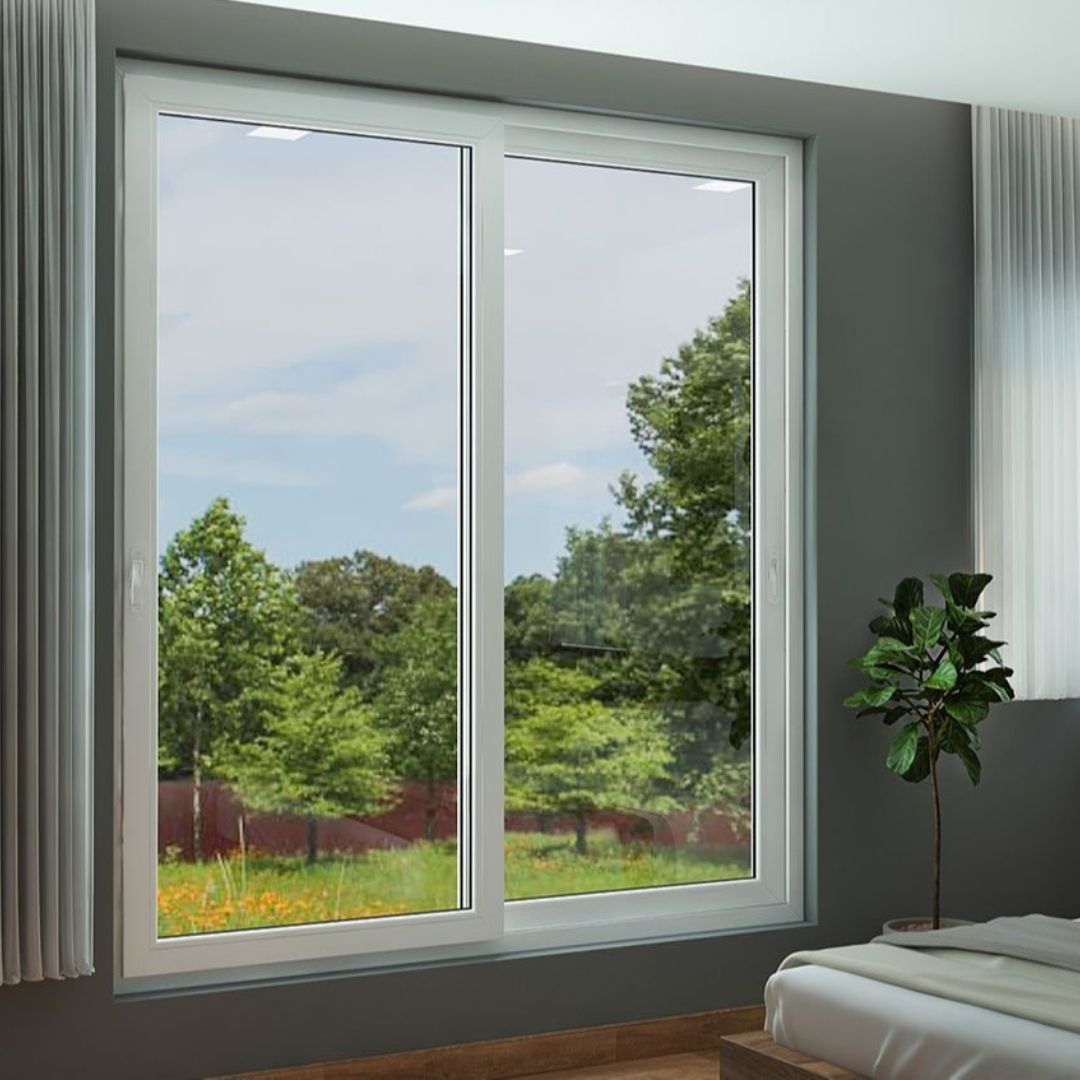

KS2700 Series Windows

Sliding system windows

Maximum shutter
1200mm × 2400mm
Slim interlock
31mm
Glass range
5mm to 18mm
Glazing
Single and double glazed
Track configurations
2 Track / 3 Track / 4 Track
Finishes
Powder / Wood / Anodizing
Locking type
Single & multipoint lock with handle
Hardware
Hardware compatible with aluminium sections

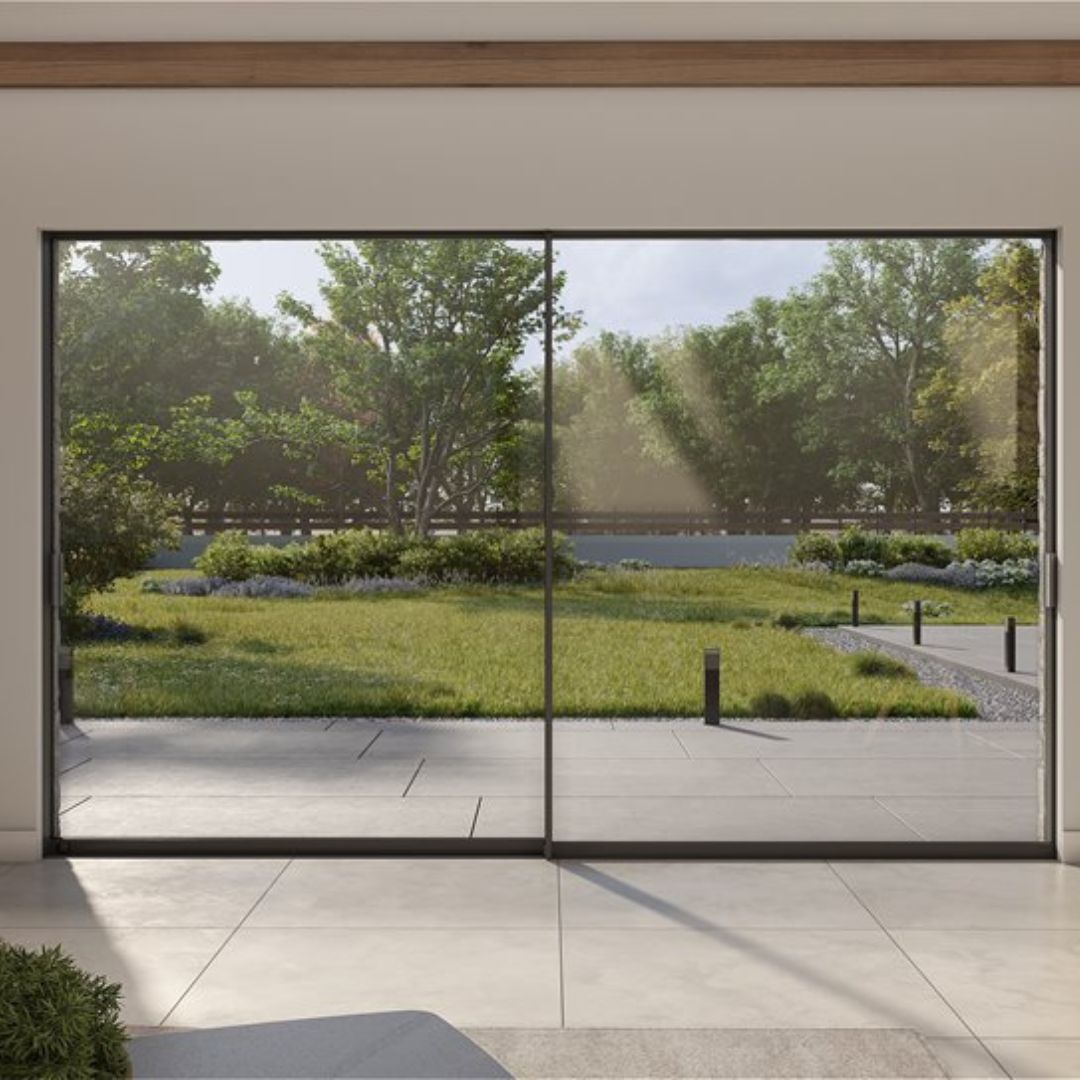

DS2900 Series Windows

Sliding system windows

Maximum shutter
1500mm × 2700mm
Slim interlock
25mm
Glass range
5mm to 20mm
Glazing
Single and double glazed
Track configurations
2 Track / 3 Track
Finishes
Powder / Wood / Anodizing
Locking type
Single & multipoint lock with handle
Hardware
Hardware compatible with aluminium sections

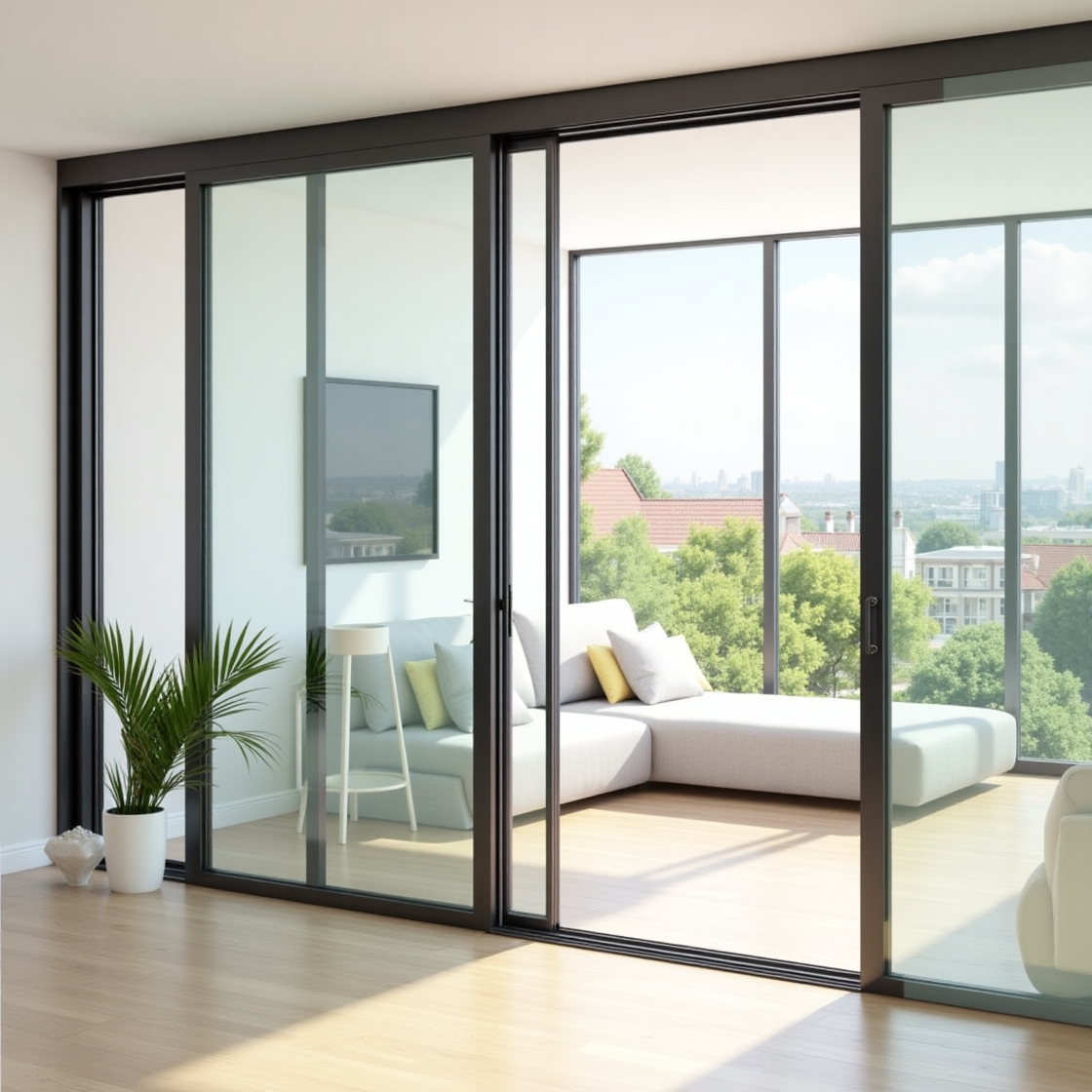

HS3500 Series Windows

Sliding system windows

Maximum shutter
1800mm × 3048mm
Slim interlock
31mm
Glass range
5mm to 22mm
Glazing
Single and double glazed
Track configurations
2 Track / 3 Track / 4 Track
Finishes
Powder / Wood / Anodizing
Locking type
Single & multipoint lock with handle
Hardware
Hardware compatible with aluminium sections

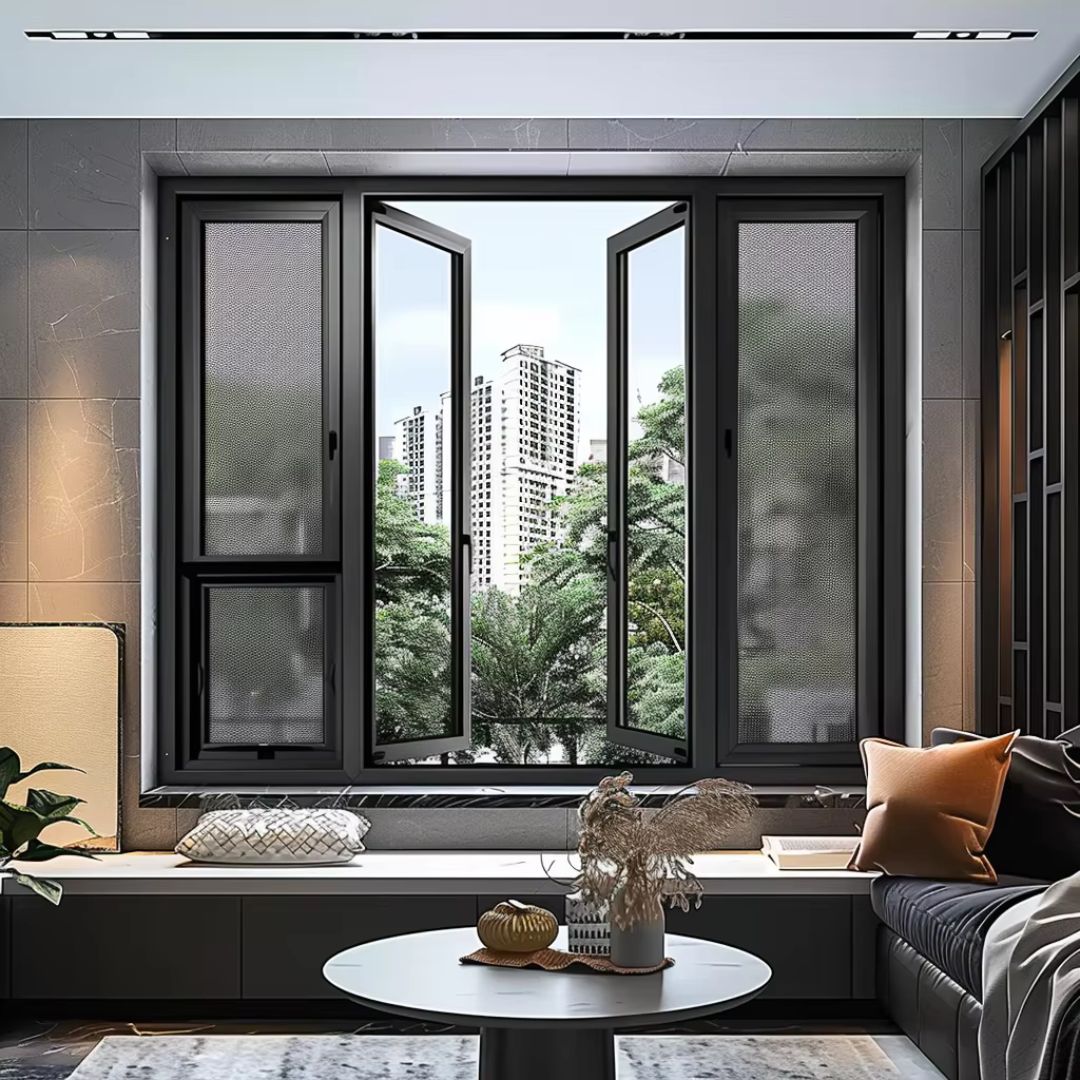

40mm Casement Windows

Casement windows

Maximum shutter
800mm × 1700mm
Glass range
5mm to 18mm
Glazing
Single and double glazed
Shutter options
Option for single / double shutters & combination of people
Finishes
Powder / Wood / Anodizing
Locking type
Single & two points locking with handle
Hardware
Hardware compatible with aluminium sections

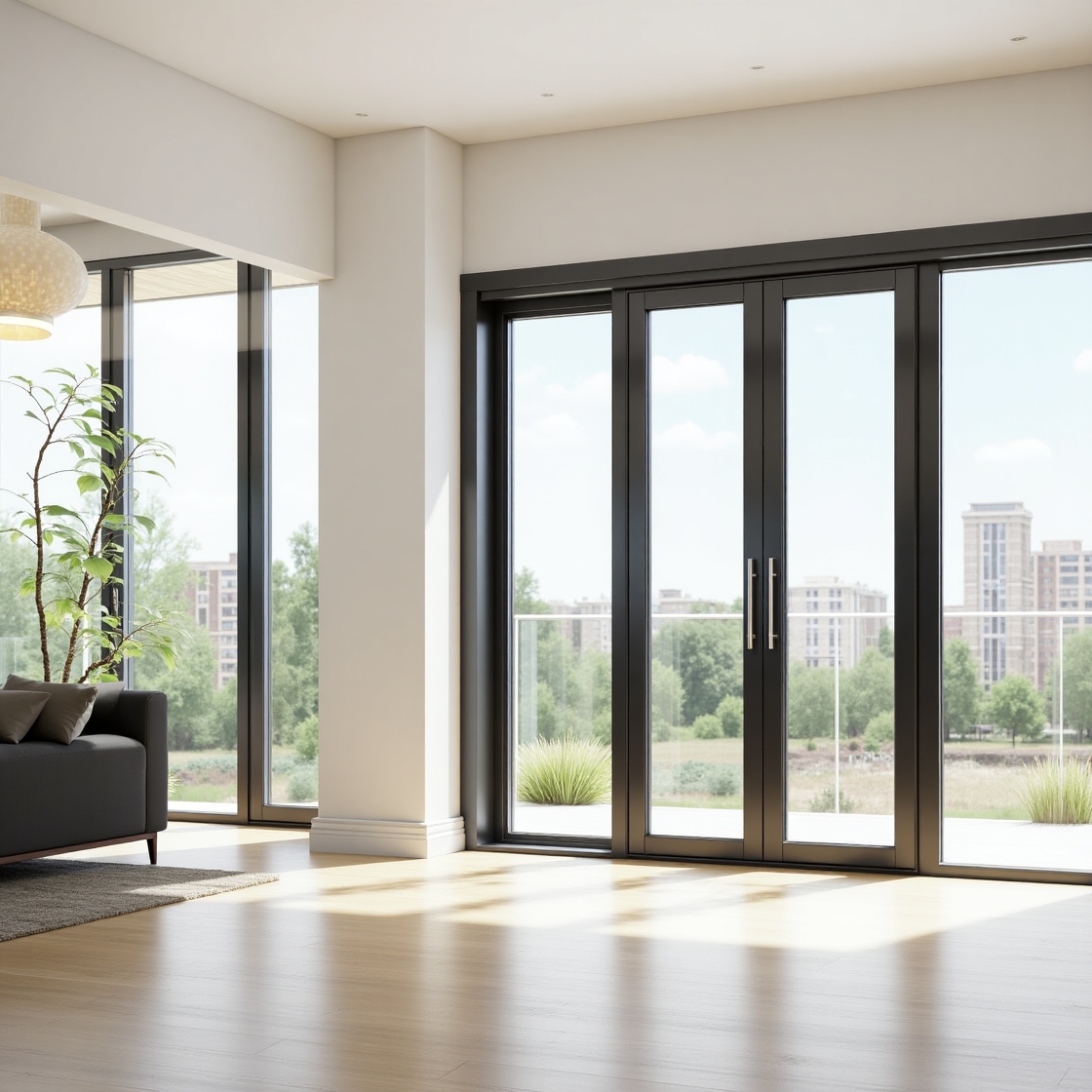

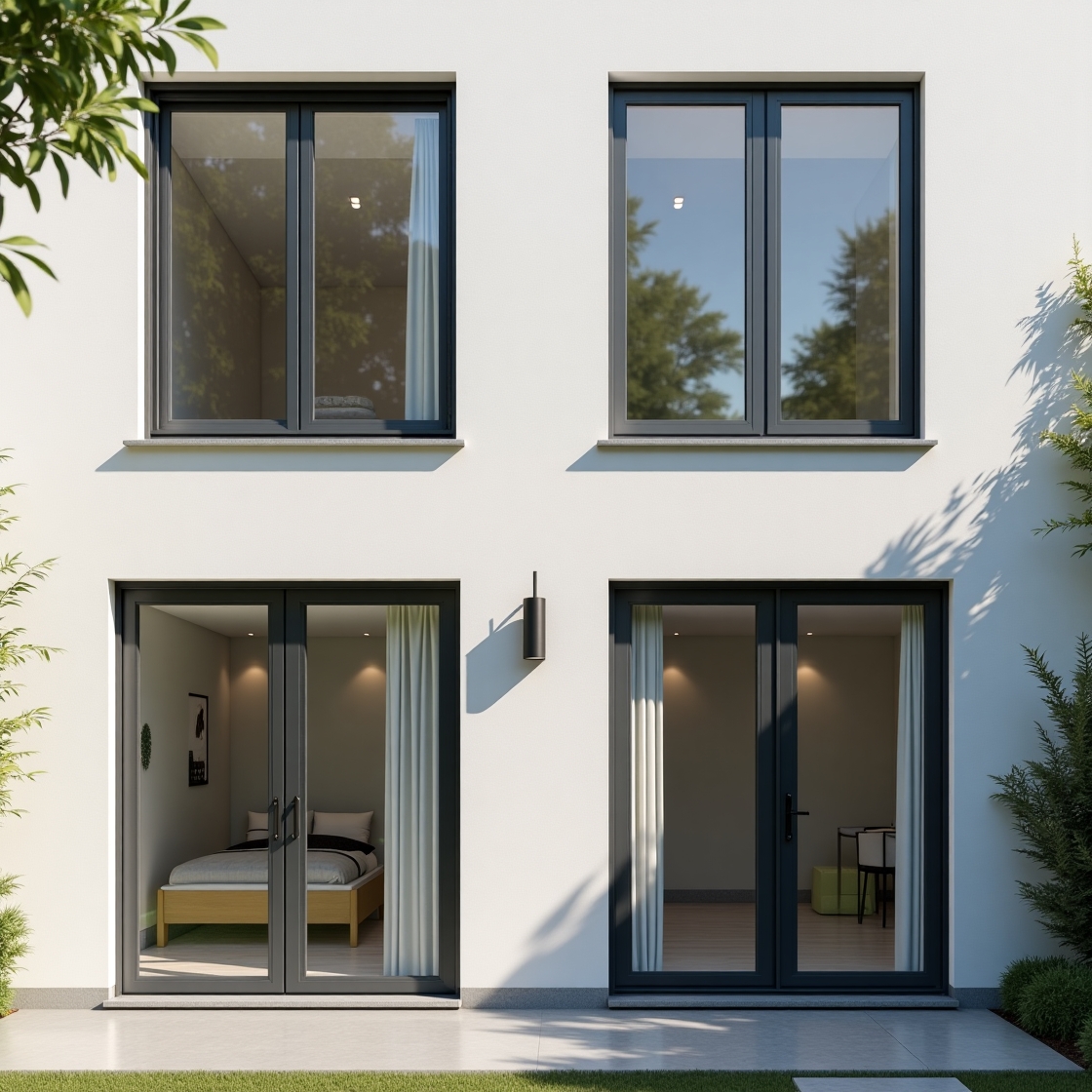

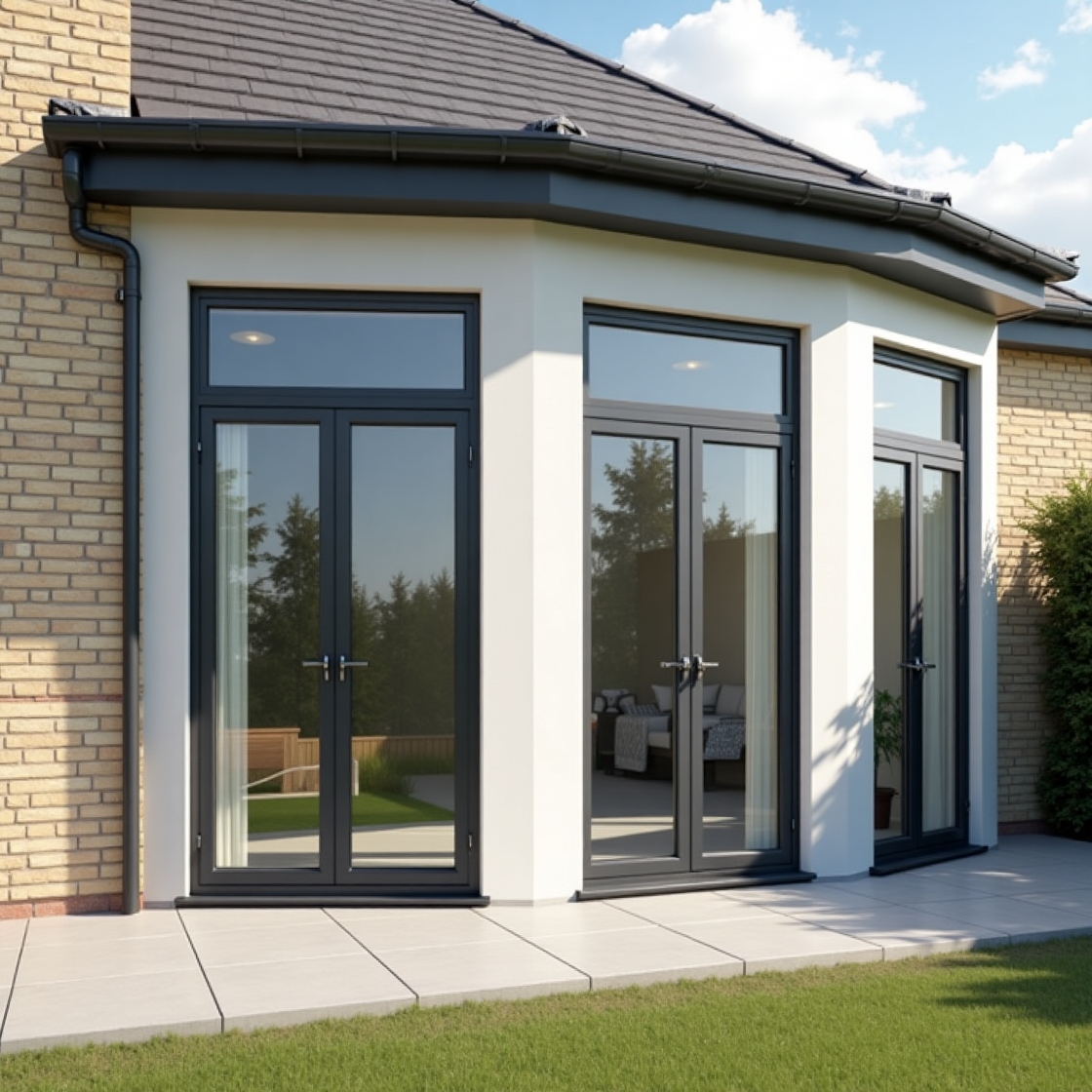

52mm Casement Windows & Door Series

Casement windows and doors

Maximum shutter
1000mm × 3000mm
Glass range
5mm to 18mm
Glazing
Single and double glazed
Shutter options
Option for single / double shutters & combination of people
Finishes
Powder / Wood / Anodizing
Locking type
Single & two points locking with handle
Hardware
Hardware compatible with aluminium sections

Tilt & Turn Windows

Tilt and turn windows

Maximum shutter
760mm × 1500mm
Single glass glazing
6mm and 8mm
Double glass glazing
22mm and 24mm
Operation
Three window operations in one; tilts & turns with a single lever
Security
Added security; can be used as a fire or smoke escape window
Ventilation
Draft-free ventilation, used in conference rooms and duct areas
Hardware options
Tilt & turn handle

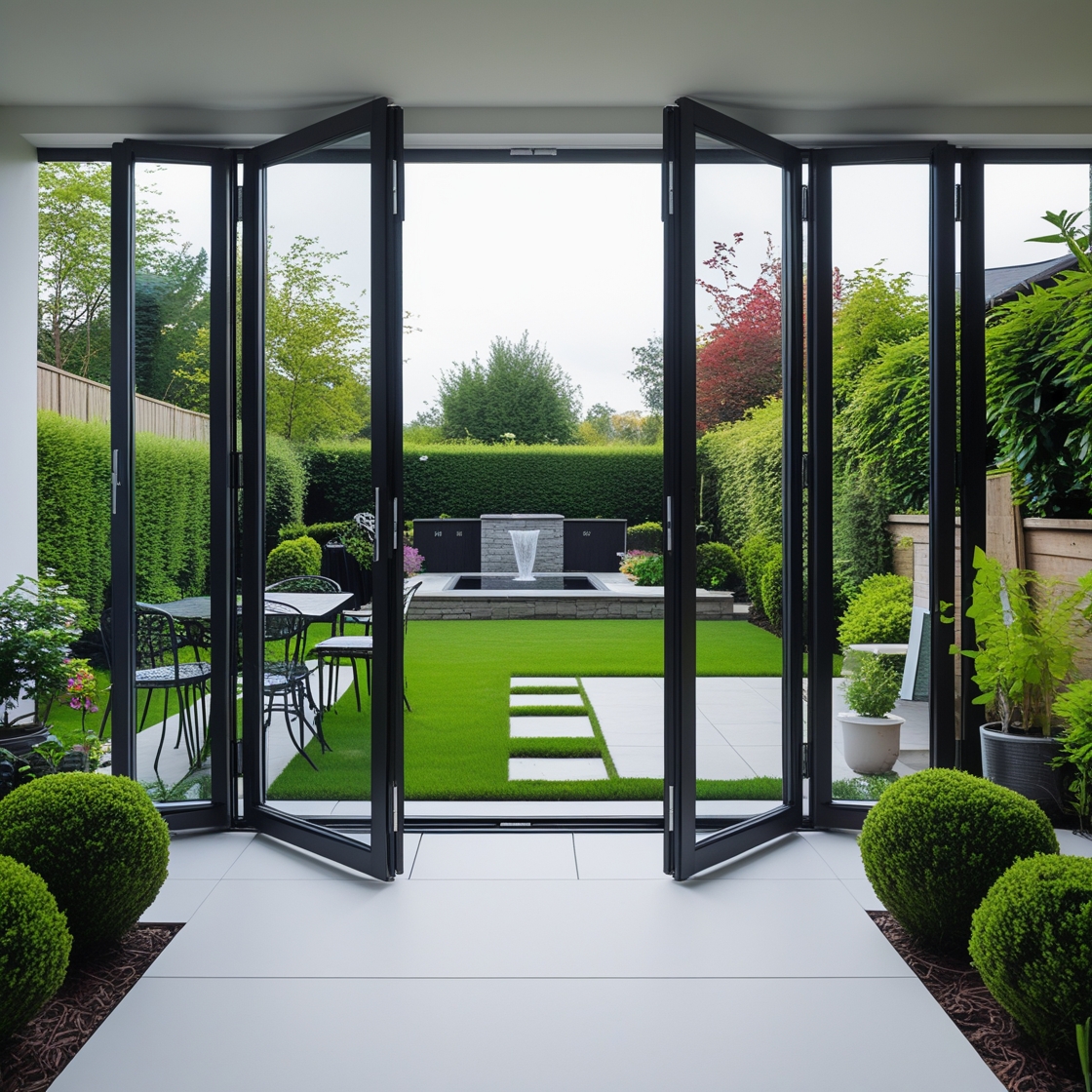

Bi-Fold Series Windows

Folding system windows

Maximum shutter
900mm × 3048mm
Shutter combination
Available in odd numbers
Glass range
5mm to 18mm
Glazing
Single and double glazed
Opening
95% opening to passage and garden
Finishes
Powder / Wood / Anodizing
Locking type
Single & multipoint lock with handle
Hardware
Hardware compatible with aluminium sections

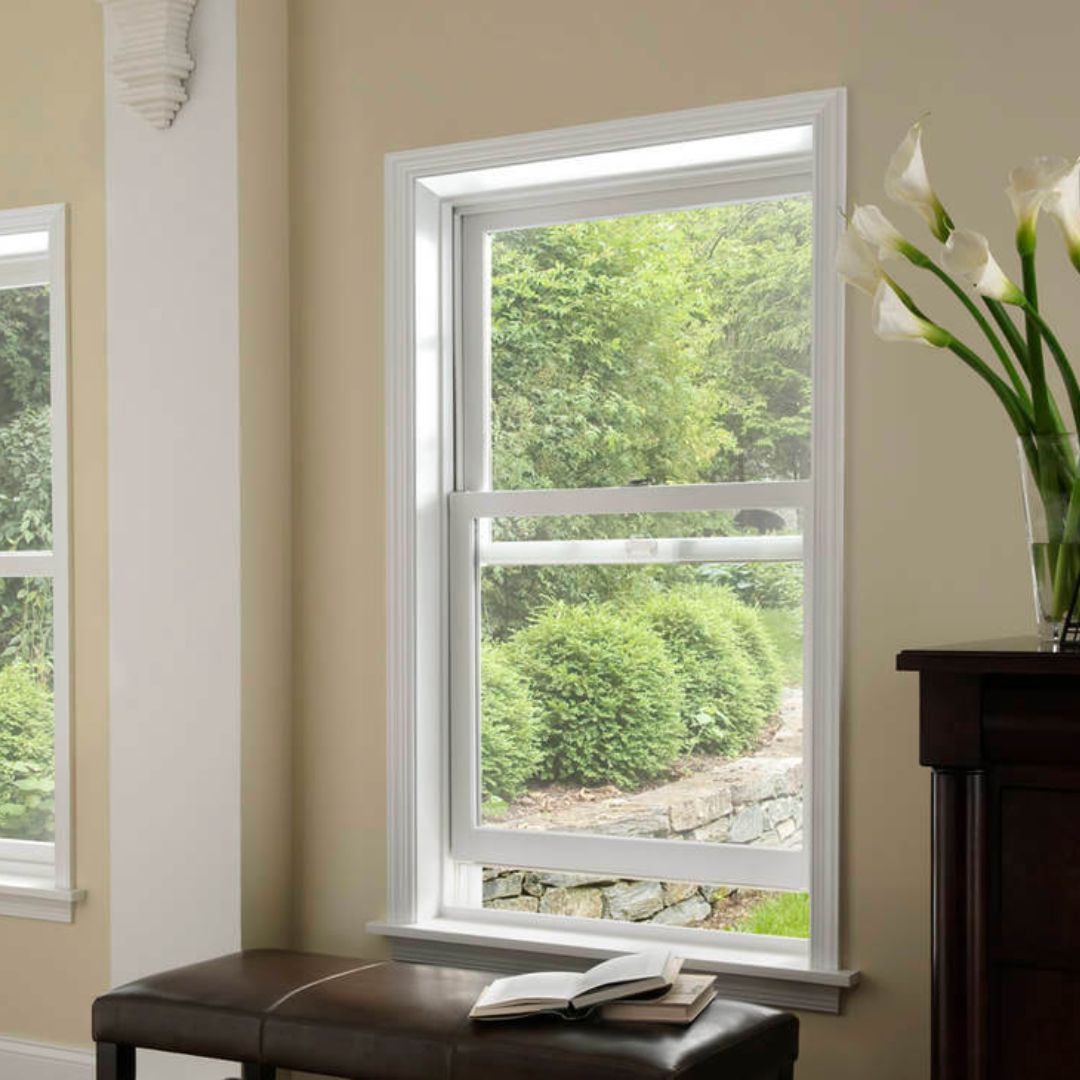

Vertical Windows

Vertical system windows

Maximum shutter
900mm × 1600mm
Glass range
5mm to 8mm
Glazing
Single glazed
Movement
Smooth and effortless in movement
Finishes
Powder / Wood / Anodizing
Locking type
Single

PD Door

Slide and swing door system

A PD door is an innovative top-hung slide and swing system that combines lateral sliding with a pivoting swing action to provide a 100% fully usable opening while using only a fraction of the space of a traditional door.

Conceptual system visualization · dimensions as specified

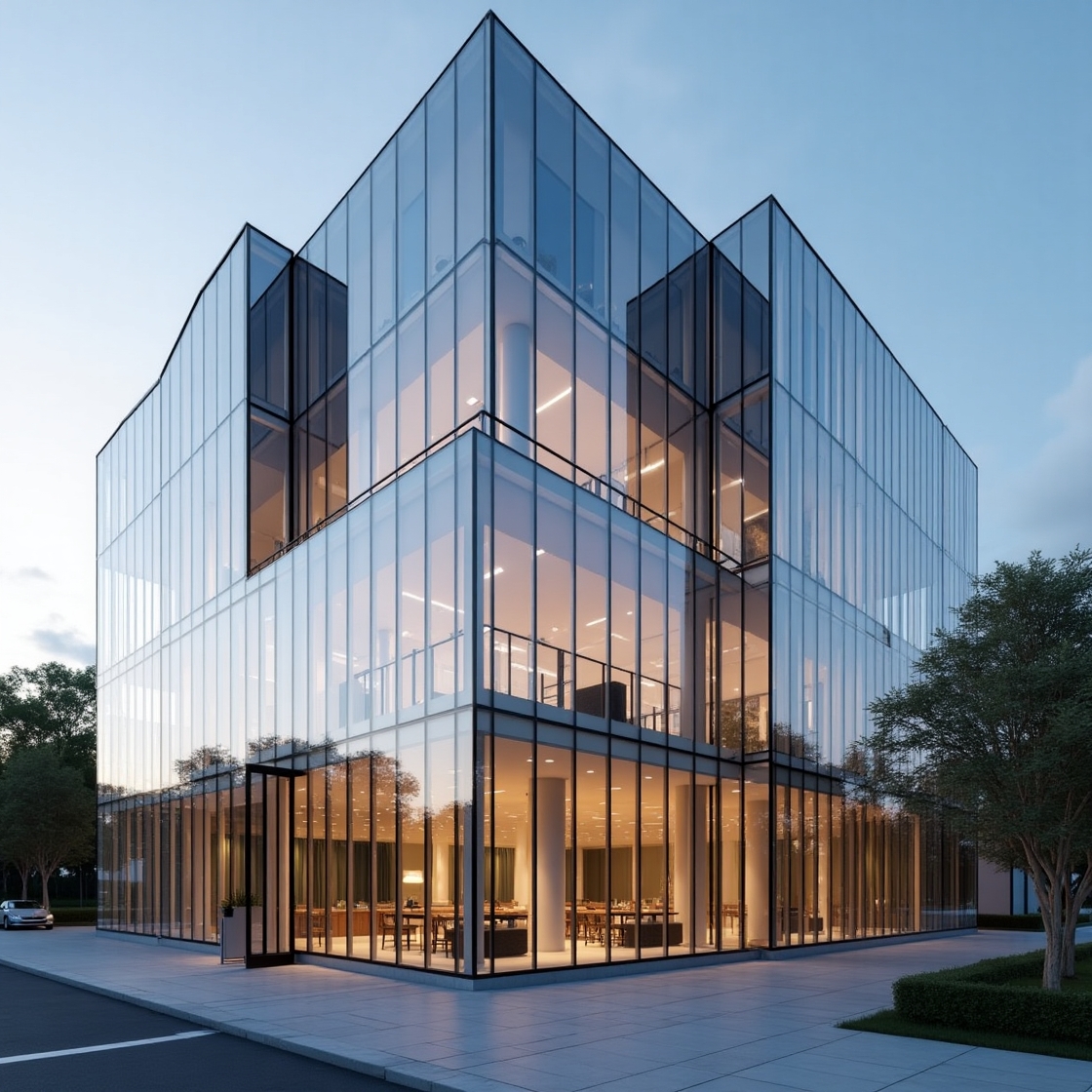

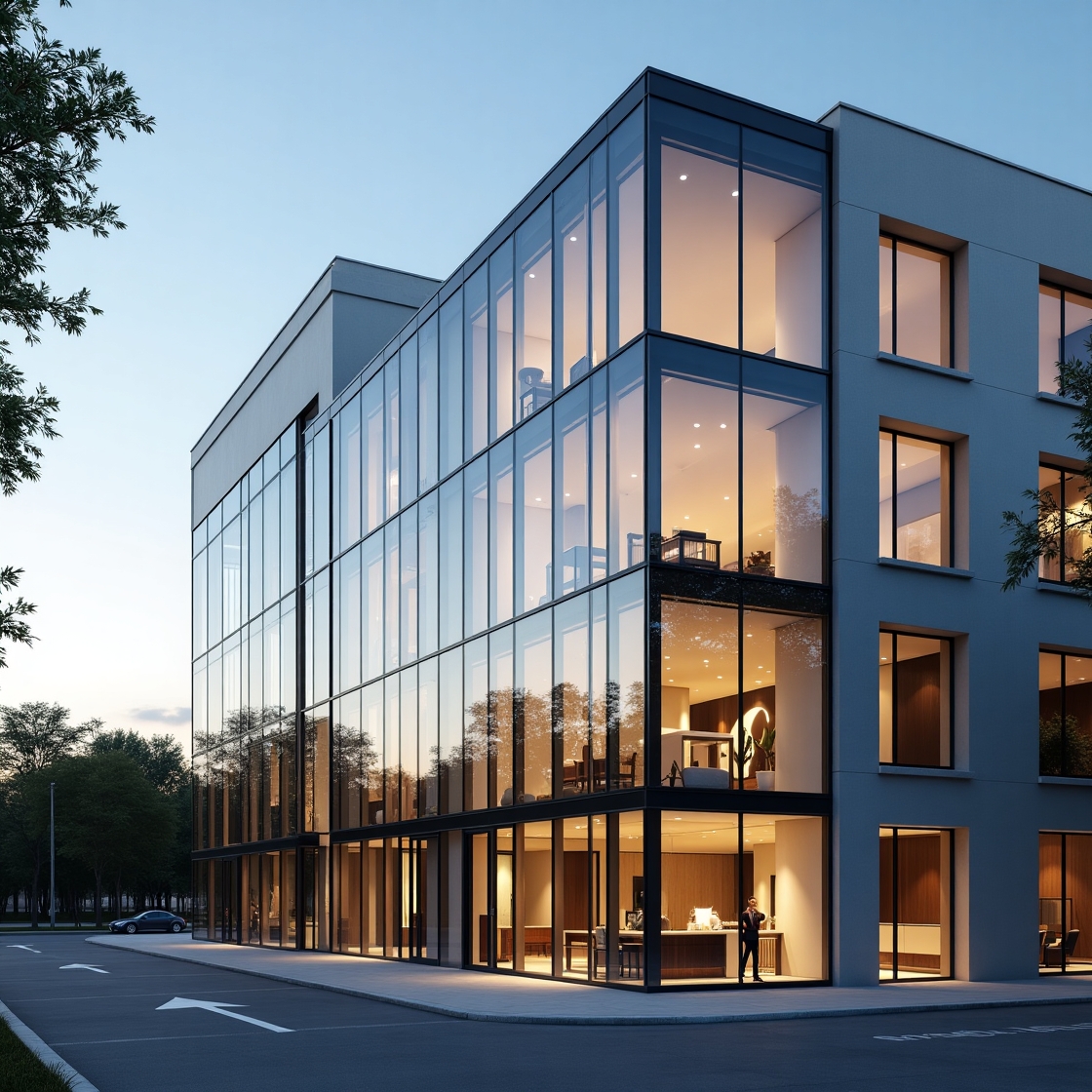

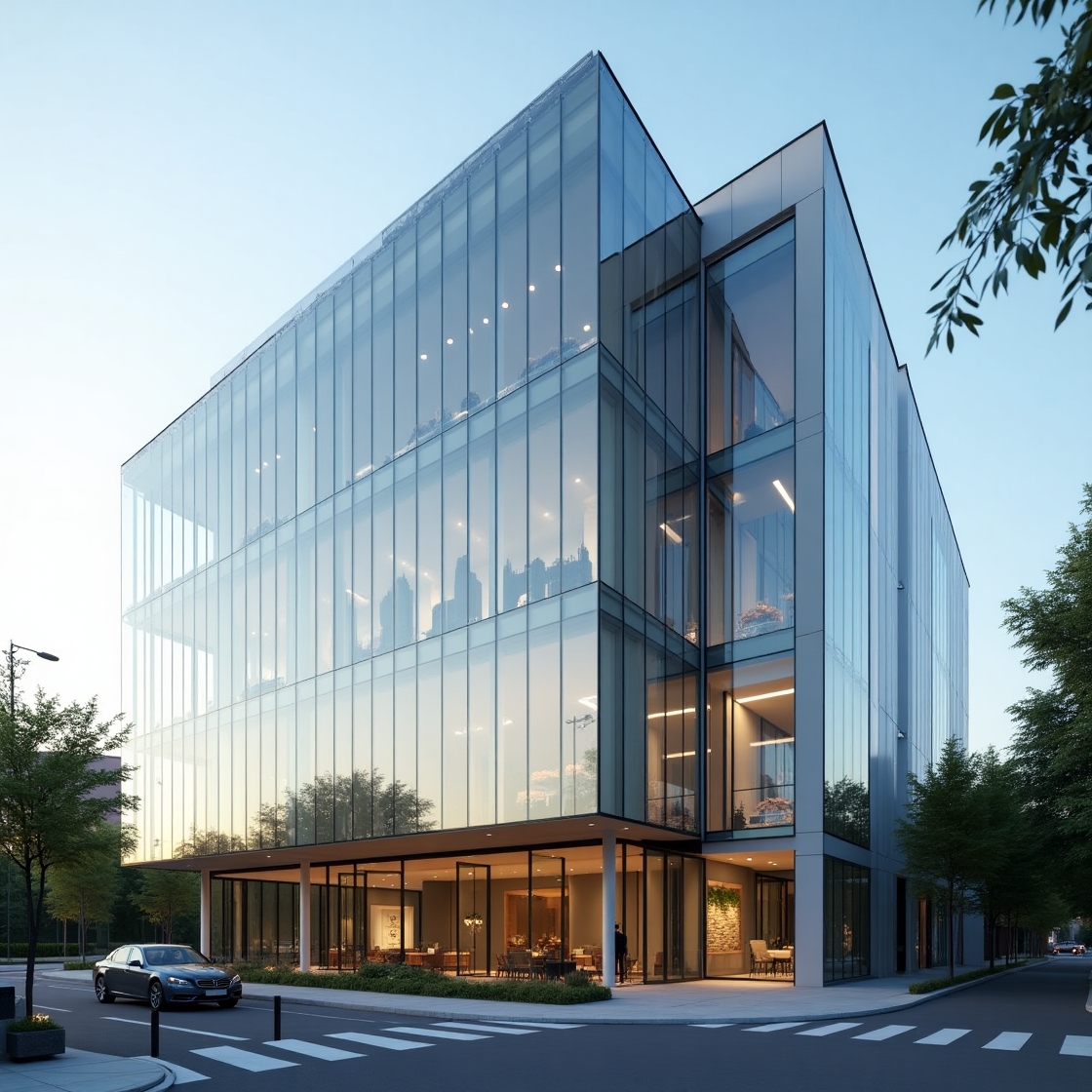

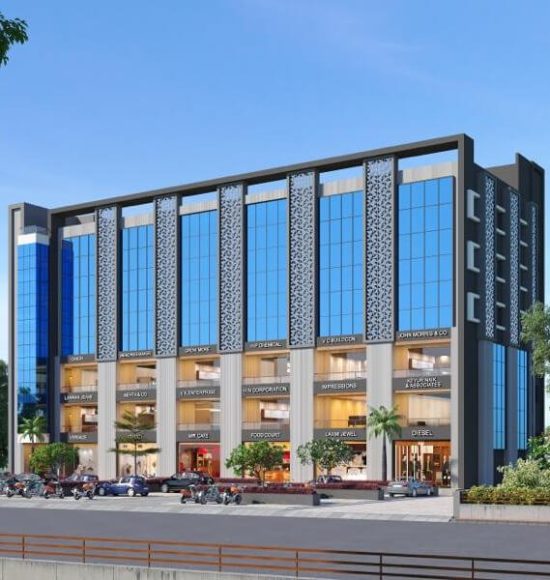

06 / Glass facade & cladding

From frame to facade.

Glass facade systems, ACP cladding and aluminium fins designed to shape architectural elevations through structure, material and proportion.

  • Glass facadeStructure · envelope
  • Facade systemsModule · rhythm
  • ACP claddingSolid surface
  • Aluminium finsDepth · shadow

07 / Shower cubicles

Privacy through transparency.

Refined shower glass cubicles designed to define wet areas while preserving openness, light and architectural simplicity.

  • Shower glass cubiclesGlass · enclosure

08 / Office partitions

Define workspace.Preserve openness.

Architectural partition systems designed to organize modern work environments through glass, aluminium and controlled spatial division.

  • Office partitionsGlass · aluminium
  • Doors & partitionsAccess · division
  • Aluminium & UPVC finsRhythm · detail

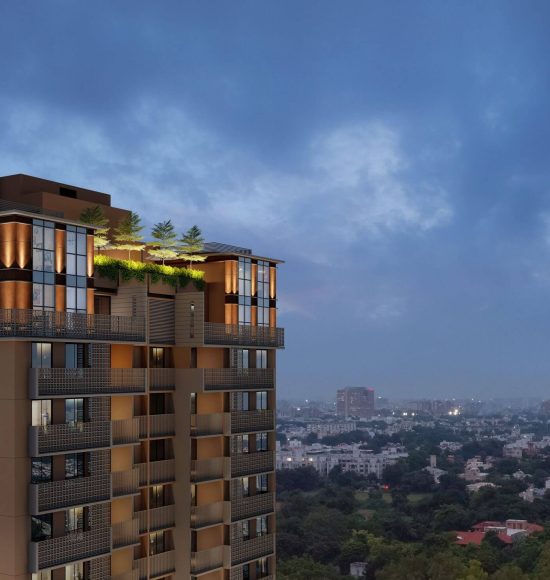

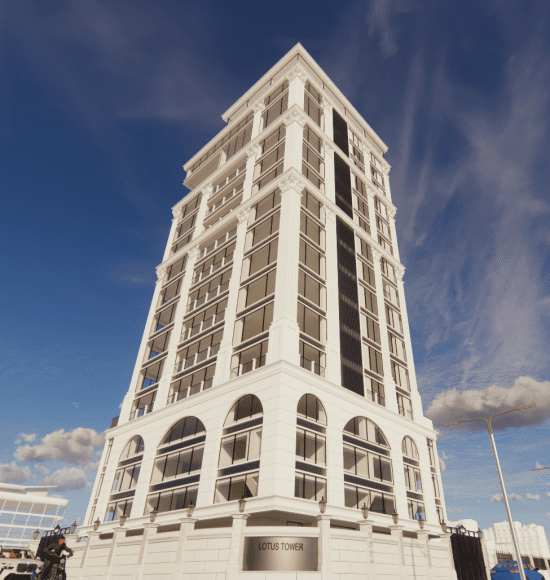

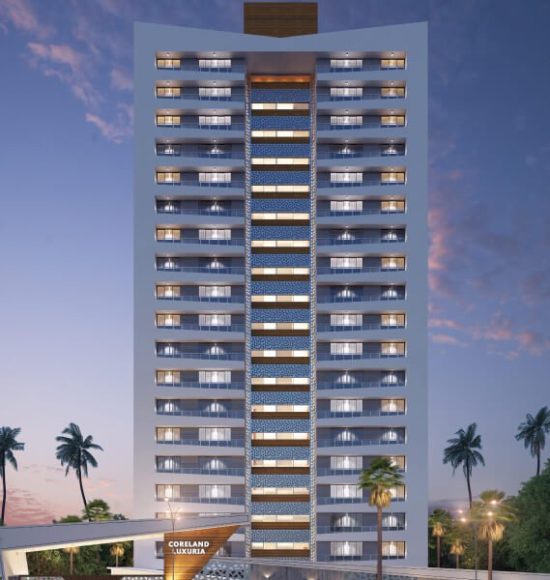

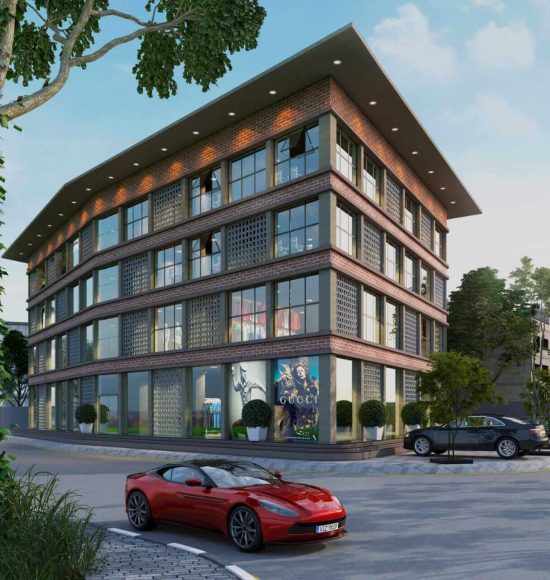

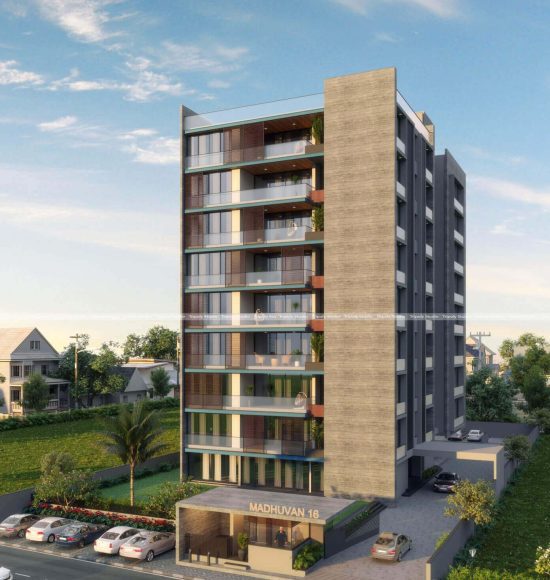

09 / Applications

Designed for different environments.

Dira architectural systems can be applied across different residential, commercial and institutional environments.

Application visualization

10 / Engineering & installation

From conceptto completion.

A coordinated workflow connecting project understanding, system selection, fabrication and installation.

  1. 01

    Consultation

    Understanding the building, the opening conditions and the architectural intent.

  2. 02

    Design & system selection

    Matching the requirement to the right aluminium system, glazing and configuration.

  3. 03

    Fabrication

    Profiles, glass and hardware brought together as a defined system.

  4. 04

    Quality & preparation

    Components checked and prepared for site conditions.

  5. 05

    Installation

    Systems set into the architectural opening and aligned.

  6. 06

    Completion

    The system handed over as finished architecture.
